The GE90 - An Introduction

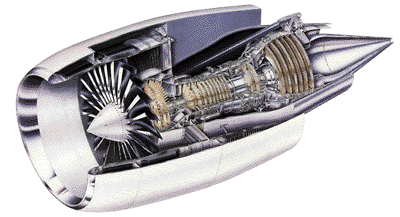

GE-90 TURBOFAN ENGINE (CUT-AWAY VIEW)
Built by General Electric in conjunction with SNECMA of France, IHI of Japan and FiatAvio of Italy, and first commissioned by the British Airways for its new fleet of Boeing 777s recently (September 1995), it is the most powerful commercial aircraft engine today. Certified at a Take-Off Thrust of 380 kN (85,000 lb.), only two engines suffice for a huge aircraft like the 777 with a seating capacity of 375 (weight approx. 230 tonnes). A derivative of the GE/NASA Energy Efficient Engine (E3) program, it is also the most fuel efficient, silent and environment friendly engine of today. In addition to the highest thrust to be offered, the GE90 is expected to provide airlines with a 5-6% improvement in fuel burn, lower noise pollution, and NOX emissions 33% lower than today’s high bypass ratio engines.
This seminar attempts at highlighting the various aspects of the engine by presenting a brief insight into its features.
COMPARISON
HIGH THRUST CLASS TURBOFAN ENGINES (> 200 kN)
(modified after [2])|
GE-90 |
CF6-50C2 |
CF6-80C2 |
|
|
Company |
General Electric (USA) |
General Electric (USA) |
General Electric (USA) |
|
In use since |
September 1995 |
1978 |
October 1985 |
|
First flew on |
Airbus A-340 & B-777 |
KC-10 (Military) |
A-300/310, 747/767 |
|
Description |
High Bypass TF |
Two-Shaft High BPR TF |
Two-Shaft High BPR TF |
|
Weight (Dry) |
--- |
3960 kg |
4144 kg |
|
Overall Length |
4775 mm |
4394 mm |
4087 mm |
|
Intake/Fan Diameter |
3124 mm |
2195 mm |
2362 mm |
|
Pressure Ratio |
39.3 |
29.13 |
30.4 |
|
Bypass Ratio |
8.4 |
5.7 |
5.05 |
|
Thrust at TO |
388.8 kN |
233.5 kN |
276 kN |
|
Thrust during Cruise |
70 kN |
50.3 kN |
50.4 kN |
|
S.F.C. (SLS) |
8.30 mg/N-s |
10.51 mg/N-s |
9.32 mg/N-s |
|
Air mass flow rate |
1350 kg/s |
591 kg/s |
802 kg/s |
|
Presence of FADEC* |
Yes |
No |
Yes |
|
Other information |
33 % lower NOx emission . Less noise than other TFs in its class (due to low fan tip speed) |
TET of LPT is 1144 K. |
Lower fuel burn (s.f.c.) than other engines, long life, high reliability. |
|
RB-211-524G/H |
Trent-882 |
JT-9D-7R4 |
|
|
Company |
Rolls Royce (UK) |
Rolls Royce (UK) |
Pratt & Whitney (USA) |
|
In use since |
February 1990 |
August 1994 (Cert.) |
February 1969 (first) |
|
First flew on |
747-400 & 767-300 |
Boeing 777 |
Boeing 747/767, A310 |
|
Description |
Three-Shaft Axial TF |
Three Shaft TF |
Twin-Spool TF |
|
Weight (Dry) |
4479 kg |
5447 kg |
4029 kg |
|
Overall Length |
3175 mm |
4369 mm |
3371 mm |
|
Intake/Fan Diameter |
2192 mm |
2794 mm |
2463 mm |
|
Pressure Ratio |
33 |
33+ |
22 |
|
Bypass Ratio |
4.3 |
4.3+ |
5 |
|
Thrust at TO |
269.4 kN |
366.1 kN |
202.3 kN |
|
Thrust during Cruise |
52.1 kN |
72.2 kN |
176.3 kN |
|
S.F.C. |
15.95 mg/N-s (cruise) |
15.66 mg/N-s (cruise) |
10.06 mg/N-s |
|
Air mass flow rate |
728 kg/s |
728+ kg/s |
687 kg/s |
|
FADEC (Y/N) |
No |
Yes |
No |
|
Other information |
Most powerful conventional a/c engine in contract (till Sept. ‘95) in the world (Trent 772) |
*FADEC - Fully Automated Digital Engine Control
LOW THRUST CLASS TURBOFAN ENGINES (< 200 kN)
(modified after [2])|
CFM56-5C2 |
JT-8D-17R |
V 2500-A1 |
|
|
Company |
CFM International (France) & GE (USA) |
Pratt & Whitney (USA) |
Intl. Aero Engines (USA) |
|
In use since |
Late 1992 |
February 1970 |
July 1988 |
|
First flew on |
Airbus A-340 |
Boeing 727/737 & DC-9 |
Airbus A-320 |
|
Description |
Two Shaft Subsonic TF |
Axial Flow Twin-Spool TF |
Twin Spool Subsonic TF |
|
Weight (Dry) |
2492 kg (Bare Engine) 3856 kg (approx.) |
1585 kg |
2242 kg (Bare Engine) 3311 kg (with powerplant) |
|
Overall Length |
2616 mm |
3137 mm |
3200 mm |
|
Intake/Fan Diameter |
1836 mm |
1080 mm |
1600 mm |
|
Pressure Ratio |
37.4 |
17.3 |
29.4 |
|
Bypass Ratio |
6.6 |
1.00 |
5.42 |
|
Thrust at TO |
138.8 kN |
72.9 kN |
111.25 kN |
|
Thrust during Cruise |
30.78 kN |
18.9 kN |
21.6 kN |
|
S.F.C. |
16.06 mg/N-s |
23.37 mg/N-s |
16.29 mg/N-s |
|
Air mass flow rate |
466 kg/s |
148 kg/s |
355 kg/s |
|
FADEC (Y/N) |
Yes |
No |
Yes |
|
Other information |
GE-90 TURBOFAN CYCLE ANALYSIS
Following are the results of a simple high bypass ratio turbofan engine cycle analysis carried with the help of a computer program. The theory of the analysis can be found in [3]. A more extensive and accurate analysis can be obtained from [4]. The available data on the GE90 engine was merely limited to its take-off thrust, bypass ratio (BPR) and overall pressure ratio (OPR). The rest of the data is tentative and is assumed on the basis of other similar GE engines (like CF6-80C2 and CFM56) with the appropriate improvements considered.
ENGINE DATA
Intake efficiency = 0.980
Fan polytropic efficiency = 0.930
Compressor polytropic efficiency = 0.910
Turbine polytropic efficiency = 0.930
Isentropic nozzle efficiency = 0.950
Mechanical efficiency = 0.990
Combustion pressure loss (ratio) = 0.050
Fuel combustion efficiency = 0.990
Area of hot nozzle = 1.0111 m2
Area of cold nozzle = 3.5935 m2
|
Design Point (Cruise) |
Off-Design Point (Take-off) |
|
|
Height (km) |
10.668 |
0.000 |
|
Mach No. |
0.850 |
0.000 |
|
RAMPR |
1.590 |
1.000 |
|
FPR |
1.650 |
1.580 |
|
LPCPR |
1.140 |
1.100 |
|
HPCPR |
21.500 |
23.000 |
|
OPR |
40.440 |
39.970 |
|
Pa (bars) |
0.239 |
1.014 |
|
Ta (K) |
218.820 |
288.160 |
|
Ca (m/s) |
252.000 |
0.000 |
|
BPR |
8.100 |
8.400 |
|
TIT (K) |
1380.000 |
1592.000 |
|
ma (kg/s) |
576.000 |
1350.000 |
|
THRUST (kN) |
69.200 |
375.300 |
|
mf (kg/s) |
1.079 |
2.968 |
|
SFC (mg/N-s) |
15.600 |
7.910 |
|
Sp. Thrust (N-s/kg) |
120.100 |
278.100 |
The computed value of the cruise thrust is found to be in close agreement with the thrust required by the Boeing 777 aircraft with two GE90 engines which is around 65-70 kN per engine.
GRAPHS FOR DESIGN POINT OPERATIONS (CRUISE)

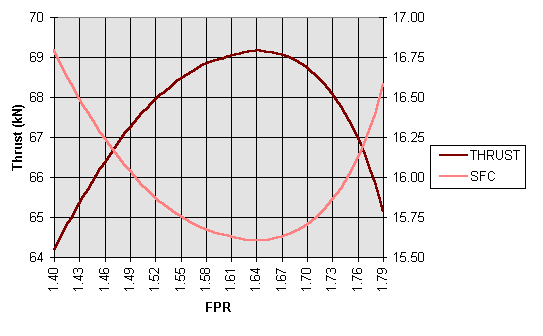

Thrust & SFC vs FPR

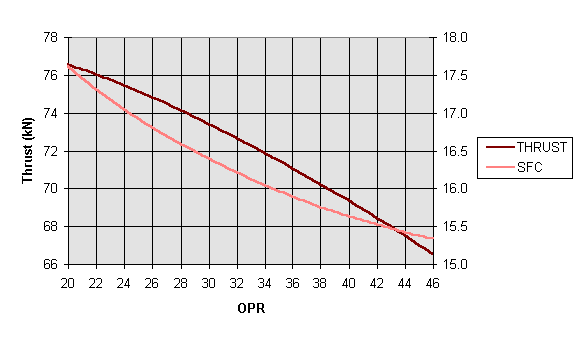

Thrust & SFC vs OPR

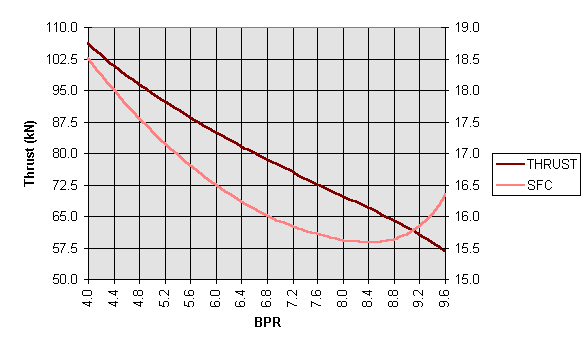

Thrust & SFC vs BPR

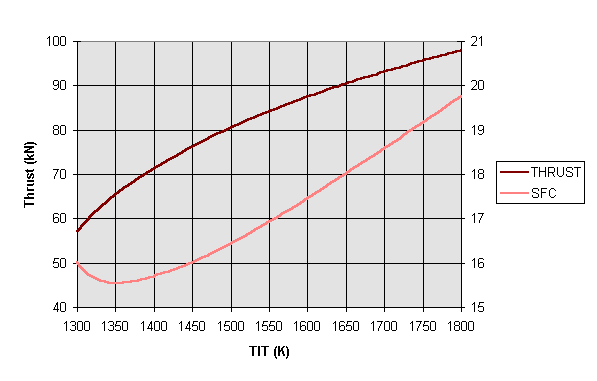

Thrust & SFC vs TIT

CERTIFICATION
([1] and [2])MILESTONES
|
Date |
Event |
|
November 1992 |
First core test |
|
March 1993 |
First engine to test with 377.8 kN thrust |
|
April 1993 |
First engine to test with 468.5 kN thrust |
|
December 1993 |
First GE90 flying testbed on Boeing 747 |
|
November 1994 |
GE90 certifies at 388.8 kN thrust |
|
December 1994 |
First Boeing 777 flight test |
|
August 1995 |
Boeing 777/GE90 aircraft certification |
|
September 1995 |
Boeing 777/GE90 entry into service |
GE90 Ground and Flight Testing -
With FAA certification of the GE90, GE Aircraft Engines brought to close one of the most extensive ground and flight test programs ever undertaken by an engine manufacturer.
GE announced the development of the GE90 in January 1990. In November 1992, the first full-scale engine core went to test; the first full engine followed in March of 1993. Since that time, GE and its revenue sharing participants have run a total of 13 development engines which have verified the engine’s inherent design benefits. Overall, the engines have logged more than 5,000 hours, including 228 flight hours on GE’s modified Boeing 747 flying test bed.
GE90 endurance engines completed more than 14,000 cycles and demonstrated excellent section durability. Seven engines have operated at more than 100,000 lb. (444.5 kN) of thrust, with one achieving a record-breaking 110,000 lb. (489 kN) of thrust. In fact, GE90 development engines have sustained thrust levels in excess of 100,000 lb. (444.5 kN) for more than 65 hours.
As part of the required certification testing, the GE90 successfully completed both the 2.5 and 8 lb. (1.13 and 3.63 kg) bird ingestion tests on the engine’s composite blades.
In October 94, four 2.5 lb. birds were ingested with the engine running at speeds required to produce 85,000 lb. (377.8 kN) of thrust at takeoff on a hot day. There was no thrust loss and the engine responded to all throttle commands during the required 20 minutes of operation following the ingestion. All fan blades were in excellent condition and have continued to run in other engine tests.
In mid-November 94, GE conducted the fan bladeout test with the FAA present. The release blade was detonated at a fan speed of 2,485 rpm, 10 rpm over the target, with the engine generating more than 105,000 lb. (466.8 kN) of sea level static (SLS) corrected thrust. The engine mount system performed as designed and the test demonstrated fan blade containment. The ruggedness of the composite fan blade was successfully demonstrated, and the observed trailing blade damage matched pre-test analysis, verifying the inherent benefits of the composite blade design.
The GE90 flew for the first time in late 1993 installed on the 747 flying testbed. Throughout the first phase of testing, the engine accumulated nearly 228 hours in 45 flights. The engine performed exceptionally well, demonstrating performance levels that were better than specification and provided pilots unrestricted throttle movement throughout the flight envelope.
WHY AN ALL-NEW ENGINE?
Requirement by Market
Historically, aircraft have grown in weight and thrust requirements. Today, the market favors heavier and longer range aircraft with thrust growth built in.


Growth Chart 1 Growth Chart 2
The above growth charts show that trend favors GE90-powered large widebody aircraft.
Positioned for the Airline’s Future
Modern cycle design has built-in total performance advantages
Reliability of Proven Technology incorporating "Lessons Learned".
GE90 DESIGN
The GE90 is designed for :
Cycle Selected for significant fuel savings.
Designs selected for maximum airline benefit.
Engine Sized For Future Aircraft Requirements.
HIGH THRUST AND TEST EXPERIENCE
Summary
Note : Sea Level Static (SLS) Corrected Thrust Levels
Eight GE90 engines have operated at or above 445 kN of SLS Thrust.
Various tests carried out
THE ENGINE AND ITS COMPONENTS
([2])

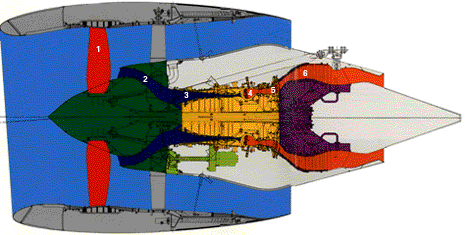

GE-90 TURBOFAN ENGINE (CROSS-SECTIONAL VIEW)
The following are the main components of the engine -
1. Composite fan
2. Low Pressure Compressor (LPC) / Booster
3. High Pressure Compressor (HPC)
4. Dual Dome Combustor
5. High Pressure Turbine (HPT)
6. Low pressure Turbine (LPT)
COMPOSITE FAN
GE90 Fan Design

Fan Diagram

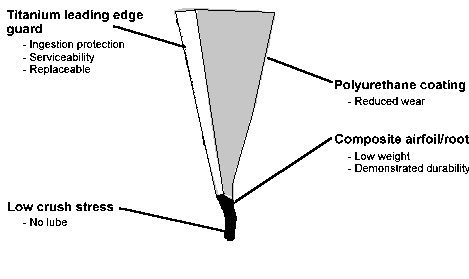

GE90 Fan Blade

Fan Blade
Composite Fan Development History
COMPRESSOR

Compressor Diagram First Stage HPC blade
COMBUSTOR
TURBINE


Turbine Diagram HP Turbine Blade - Stages 1 & 2 resp.
OTHER FEATURES ([2])
GE90 AND THE ENVIRONMENT
Reduced Emissions and Smoke
GE90 Combustor Provides Improved Operability with Reduced Emission Levels
TRANSPORTABILITY

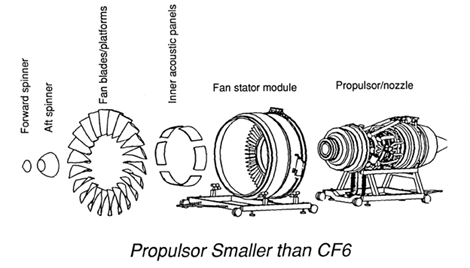

GE90 Propulsor

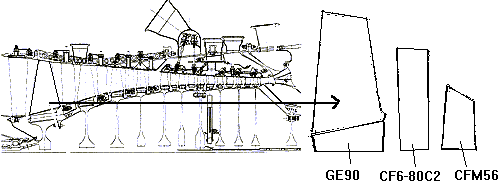

GE90 Modular Design
FUTURE OF GE90
([2])
THRUST GROWTH
GE90 components are sized for growth. If the market requires it, 110,000 lb. (511 kN) of thrust could be produced by a GE90 with further investment. The following are the ways General Electric intends to achieve the thrust increment -
Certification Engine.
B777 "B" Market.
Improved LPT Materials.
Increased HPT Cooling and 1st Stage Blade TBC.
B777 "B" Market.
B777 Stretch.
Improved Turbomachinery.
Higher P/P Fan with Destaged Core.
Higher Speed and P/P Fan with Destaged Core.
CONCLUSION
It is seen that GE90 is indeed the most powerful and efficient commercial transport engine of the 90’s. It also has ample scope for thrust growth to keep up with the future requirements. Although unavailability of exact technical information on the engine such as its weight, pressure ratio, TIT, cruise thrust, s.f.c, etc. render the data in this report tentative, its comparison with other engines clearly shows that it is a class apart from them in terms of thrust and fuel efficiency.
